115-3220 Bonding Iron, 230 VAC

115-3220 Bonding Iron, 230 VAC
$76.00 Each	DATA SHEET

Temperature-controlled bonding iron designed to cure dry film adhesive used in circuit board repair. Delivers precise heat for bonding replacement pads, lands and edge contacts, with adjustable temperature from 180–480 °C for reliable PCB rework.

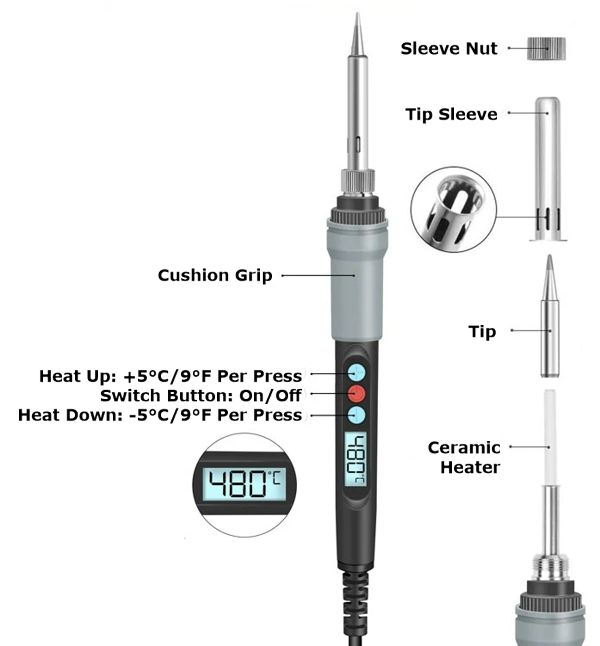

The Bonding Iron has adjustable temperature control that you can set at the optimal temperature for curing the bonding film used to repair damaged surface mount pads, lands, edge contacts, and other circuit board patterns. You can adjust the temperature between 180 and 480 °C (350 to 900 °F) and switch between °C and °F. The temperature remains stable =/- 5°.

Warning: foreach() argument must be of type array|object, int given

Ordering
Part No.	Description	Price	Qty / Order
115-3220	Bonding Iron, 230 VAC	$76.00 Each

Related Items
Part No.	Description	Price	Order
115-2804	Bonding Tip, .040" x .060" (1.02 mm x 1.52 mm) Tip used to bond replacement conductors to circuit boards.	$48.00 Each
115-2802	Bonding Tip, .080" (2.03 mm) Diameter Tip used to bond replacement conductors to circuit boards.	$48.00 Each
115-2805	Bonding Tip, .080" x .120" (2.03 x 3.05 mm) Tip used to bond replacement conductors to circuit boards.	$48.00 Each
115-2803	Bonding Tip, .120" (3.05 mm) Diameter Tip used to bond replacement conductors to circuit boards.	$48.00 Each
115-2801	Bonding Tip, Tapered Tip used to bond replacement conductors to circuit boards.	$48.00 Each

Classifications
Harmonized Code	8514.10.0000
Export Administration Regulations (EAR)	EAR99
Export Control Classification Number (ECCN)	Not Applicable
